BEATING HEART SIMULATOR FOR TRANSCATHETER TRICUSPID VALVE REPLACEMENT
Advanced skills & patient like training. SimuPULSE platform simulators have full pulsatile movement and flow

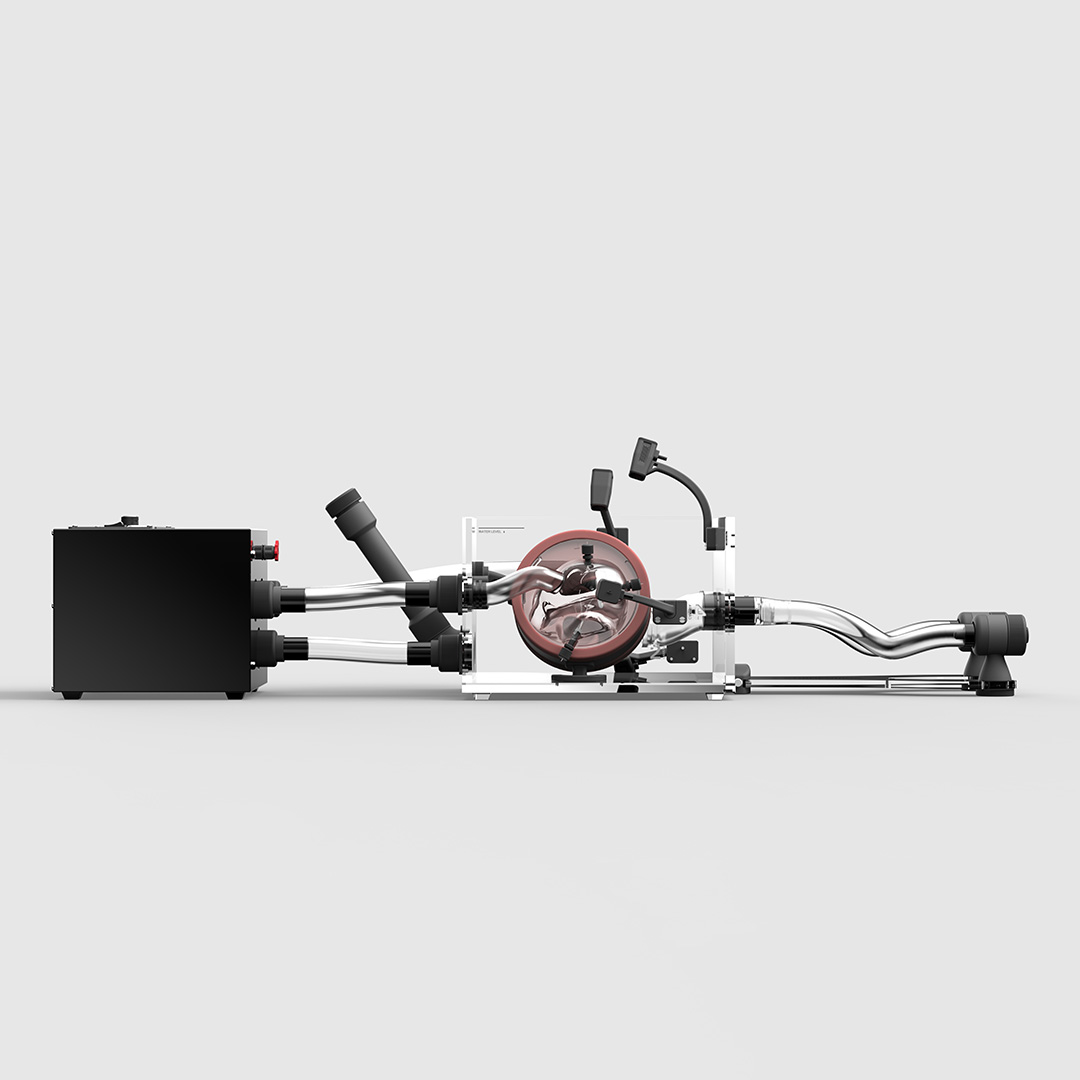

Overview
MAIN FEATURESSTRUCTURE
Focus
Patient and procedural outcome
Learn
Outcomes driven implantation with flow and regurgitation
Advanced procedural imaging protocol
Tips and tricks
MAIN FEATURESSTRUCTURE
Rigid structures
Right Atrium and Ventricle
Transesophageal access
Landmarks representing
Aortic Valve
Left Atrial Appendage
Soft structures
Mitral Valve Apparatus with adjustable Chordae
Left and right Atrium
Femoral access - left & right
Inferior and superior Vena Cava
Real imaging
DIRECT CAMERAS & ECHO GUIDANCE
Direct cameras
Five video cameras replicating the full spectrum of the main fluoroscopic and echocardiographic views. 1x miniPC and screen for split visualization and training session recording.
1. RV Inflow-Outflow View
2. En-Face View
3. Annular focus RV Inflow-Outflow View
4. Ventricular Transgastric View
5. En-face TV Focus Endoscopic View
←
→
REAL TIME IMAGE TRAINING
With ultrasound systems visualizing the structures of interest and the device in a realistic anatomical setting. Customized imaging to suit your needs.

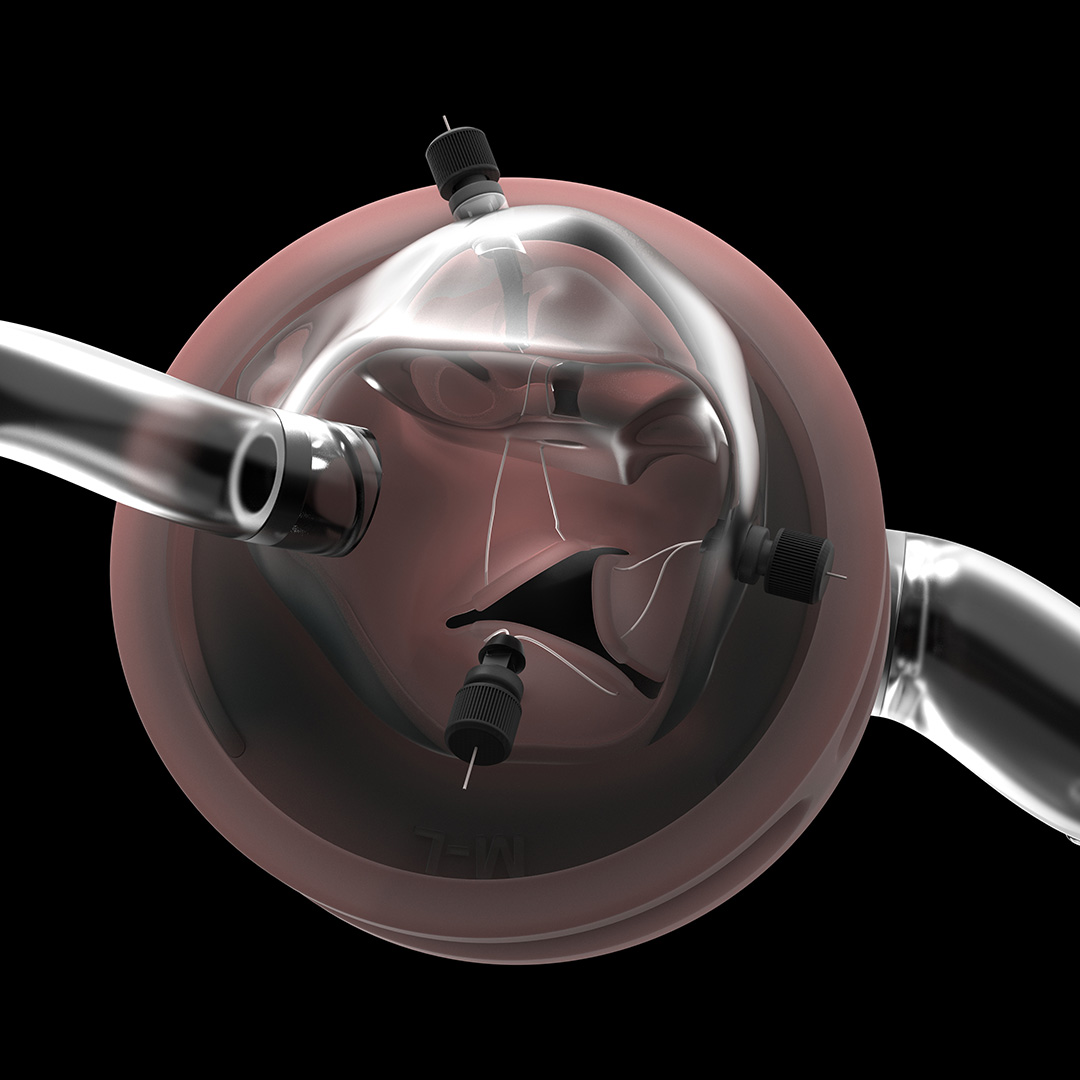

Complete anatomical representation, Human Grade and tissue like tactile interaction along the entire implantation pathway. Designed to generate pressure gradient through the Tricuspid Valve to allow realistic behavior of the device. Based on real patients CT and 3D echo datasets
Challenging Tricuspid Valve anatomies and pathologies

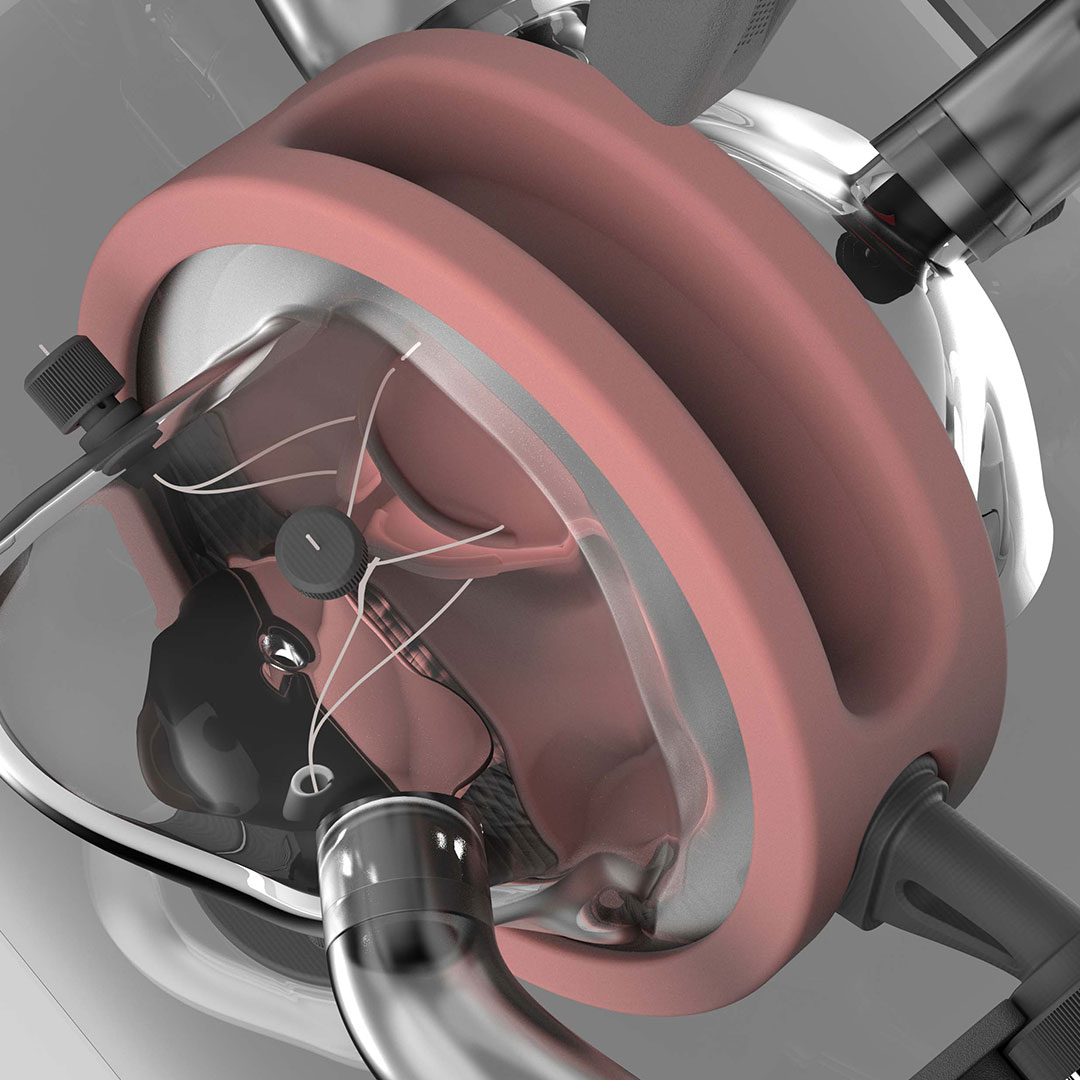

Technical
Features
Pulsatile systemImaging capabilitiesAquariumPowerSetupEasy travelplug and play
PULSATILE FLOW
Pulsatile portable pump system for hemodynamic heart valve motion
Self-adjustable body temperature control (36.7°C)
Adjustable heart rate between 40-80BPM
Possibility for rapid pacing activation at an adjustable rate
Adjustable pulsatile intensity with 3-setting
Pulsatile systemImaging capabilitiesAquariumpowersetupeasy travelplug and play
Imaging capabilities
All components can be used in the cath lab under fluoroscopy
Five video cameras
1x miniPC with split screen capabilities for visualization and recording
Transesophageal access route and realistic esophagus
ICE compatible
Pulsatile systemImaging capabilitiesAquariumpowersetupeasy travelplug and play
10L
Quick water fill container included
Pulsatile systemImaging capabilitiesAquariumpowersetupeasy travelplug and play
Power system
12V powered system with socket for various power cables and plugs
Worldwide compatible with voltage from 90 to 264V at a frequency from 47 to 63Hz
Pulsatile systemImaging capabilitiesAquariumpowersetupeasy travelplug and play
Setup info
Electronic IFU documentation with detailed video user training and guide for simple assembly
Pulsatile systemImaging capabilitiesAquariumpowersetupeasy travelplug and play
All fits into
Protective luggage with wheels for easy travel, plug & play
Weight
Total simulator weight including protective luggage: 23kg
Dimension
59x47x42cm
Pulsatile systemImaging capabilitiesAquariumpowersetupeasy travelplug and play
No tools required
Full system setup ready in under 10 minutes. Just add warm water and it's ready for your device
Disposables

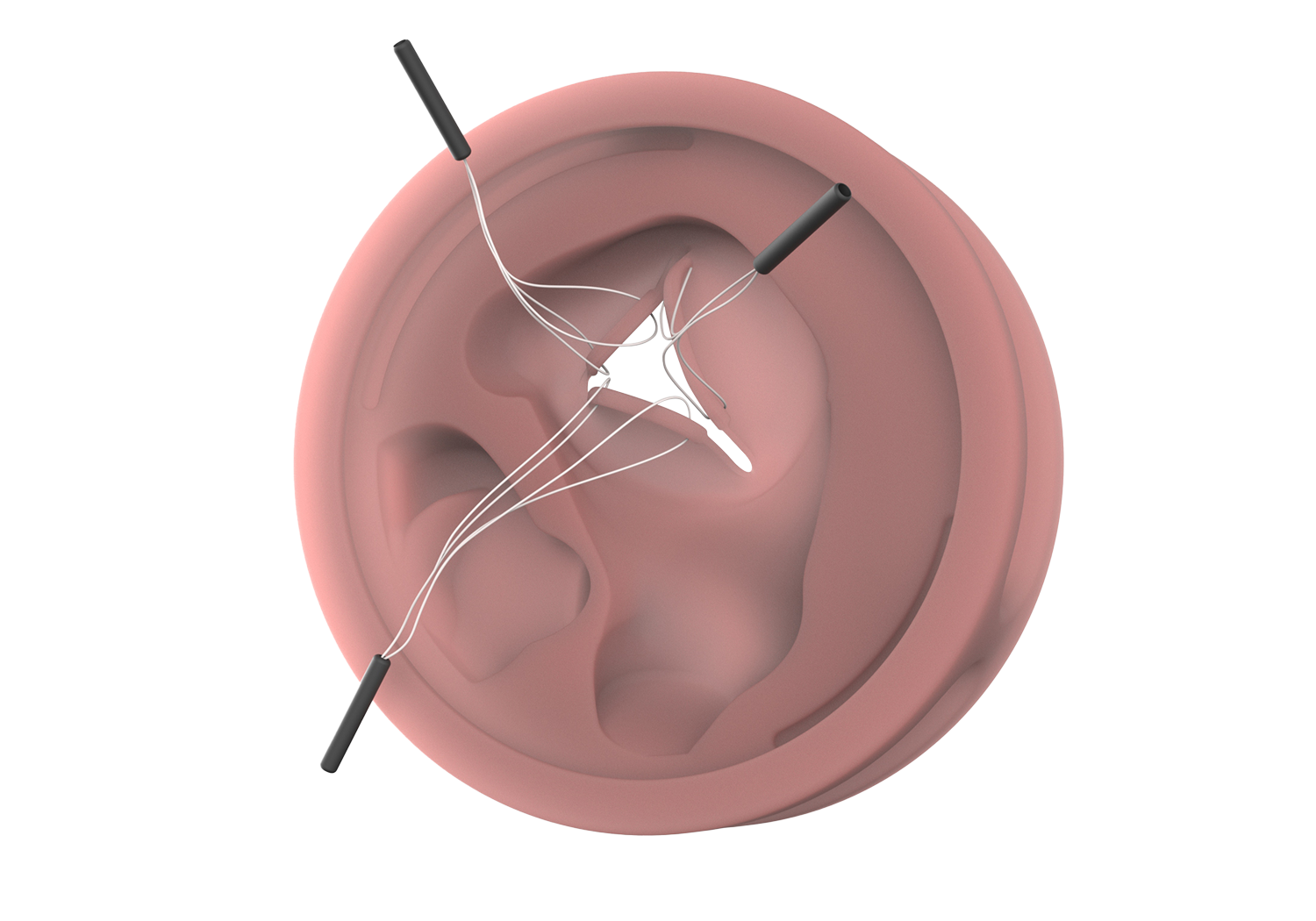

CUSTOMIZED PATIENT PROFILES and anatomies
TRICUSPID valve FTR sMALL
Small silicone-based Functional Tricuspid Regurgitation Valve with Mitral and Aortic landmarks.
Septal-lateral diameter
41mm
Perimeter
128mm
Septal-lateral diameter
13.2cm²
TRICUSPID valve FTR MEDIUM
Medium silicone-based Functional Tricuspid Regurgitation Valve with Mitral and Aortic landmarks.
Septal-lateral diameter
54mm
Perimeter
169mm
Septal-lateral diameter
22.9cm²
TRICUSPID valve FTR LARGE
Large silicone-based Functional Tricuspid Regurgitation Valve with Mitral and Aortic landmarks.
Septal-lateral diameter
59mm
Perimeter
179mm
Septal-lateral diameter
25.5cm²
