ULTRA PORTABLE HEART SIMULATOR FOR TRANSCATHETER MITRAL VALVE INTERVENTIONS

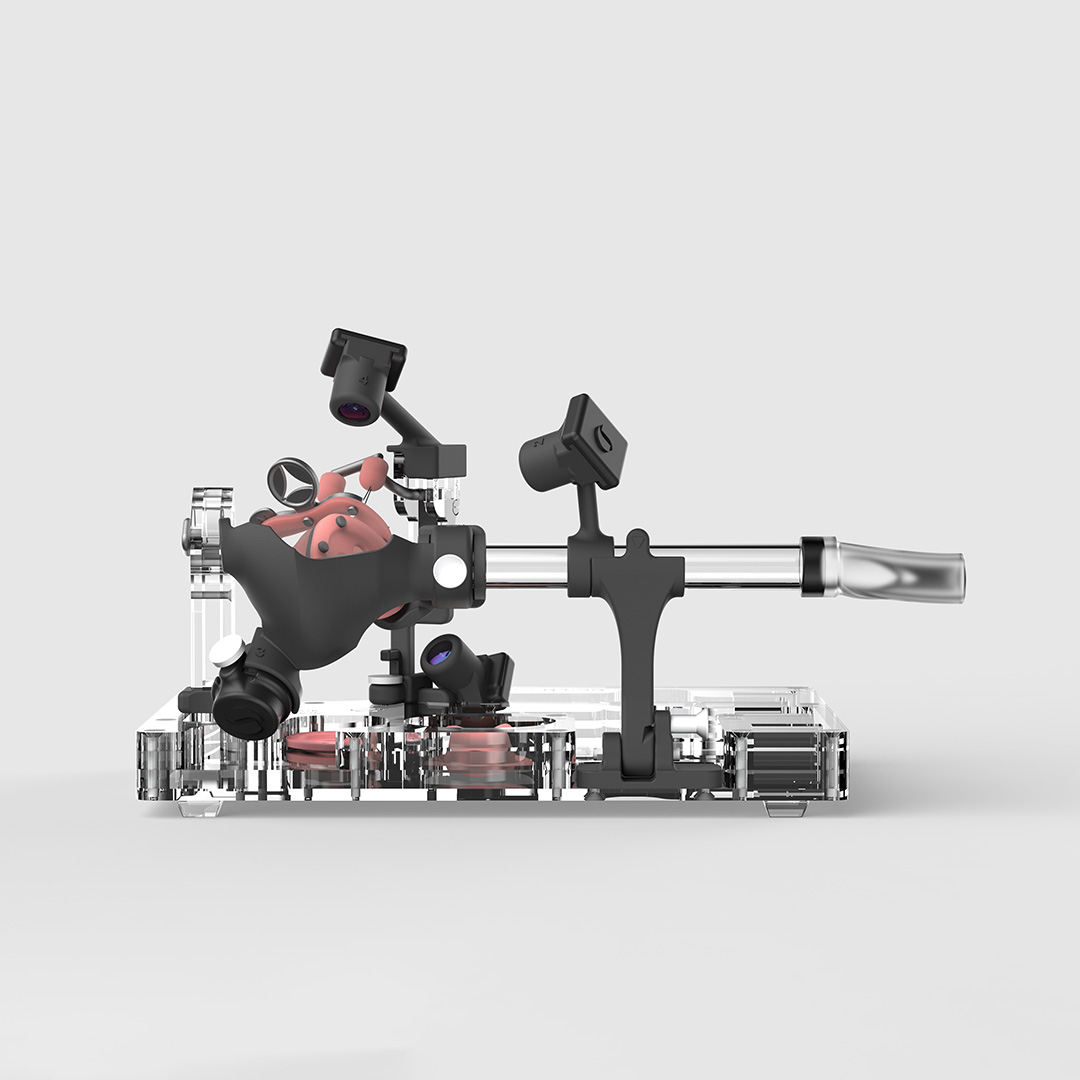

Basic skills targeted training. The simuDRY platform simulators are static and ultra portable

Overview

MAIN FEATURES  STRUCTURE


Focus
Device function and implant

Learn
Basic anatomical references

Delivery system maneuvering

Implant functions

Basic procedural steps

Spatial targeted interaction of the device and delivery system with anatomy
MAIN FEATURES  STRUCTURE


Rigid structures
Replicated geometry of
Right Atrium

Mitral Annulus

Inferior Vena Cava
Landmarks representing
Aortic Valve

Left Atrial Appendage

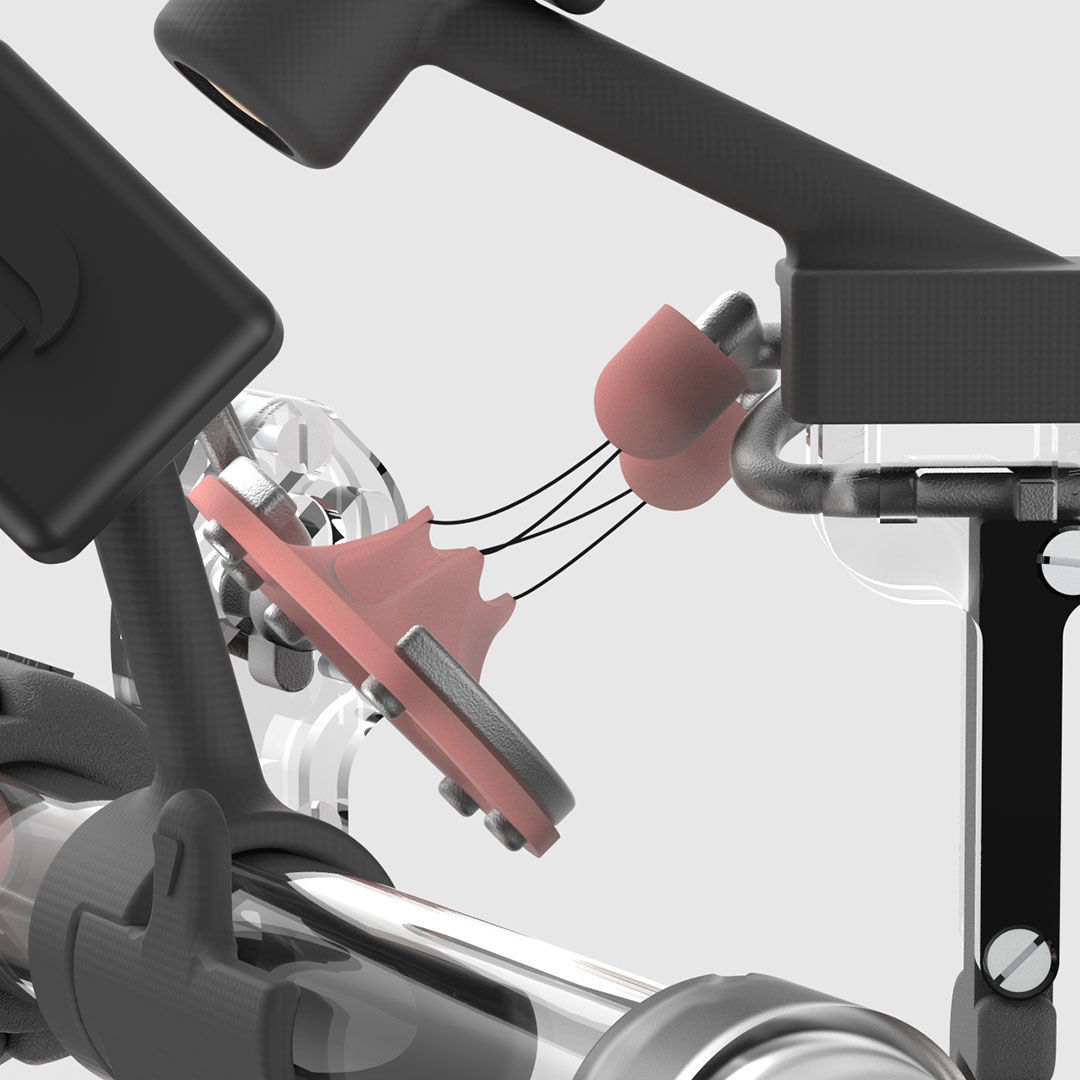

Soft structures
Papillary muscles with Chordae

Valve leaflets

Fossa ovalis

Real imaging

DIRECT CAMERAS
& ECHO GUIDANCE

Direct cameras

Replicating the implanter's view through four video cameras, positioned to capture the following echo-like views.
1. Left Ventricular Outflow Tract (LVOT)
2. Intercommissural (IC)
3. En-Face
4. BICAVAL
←
→

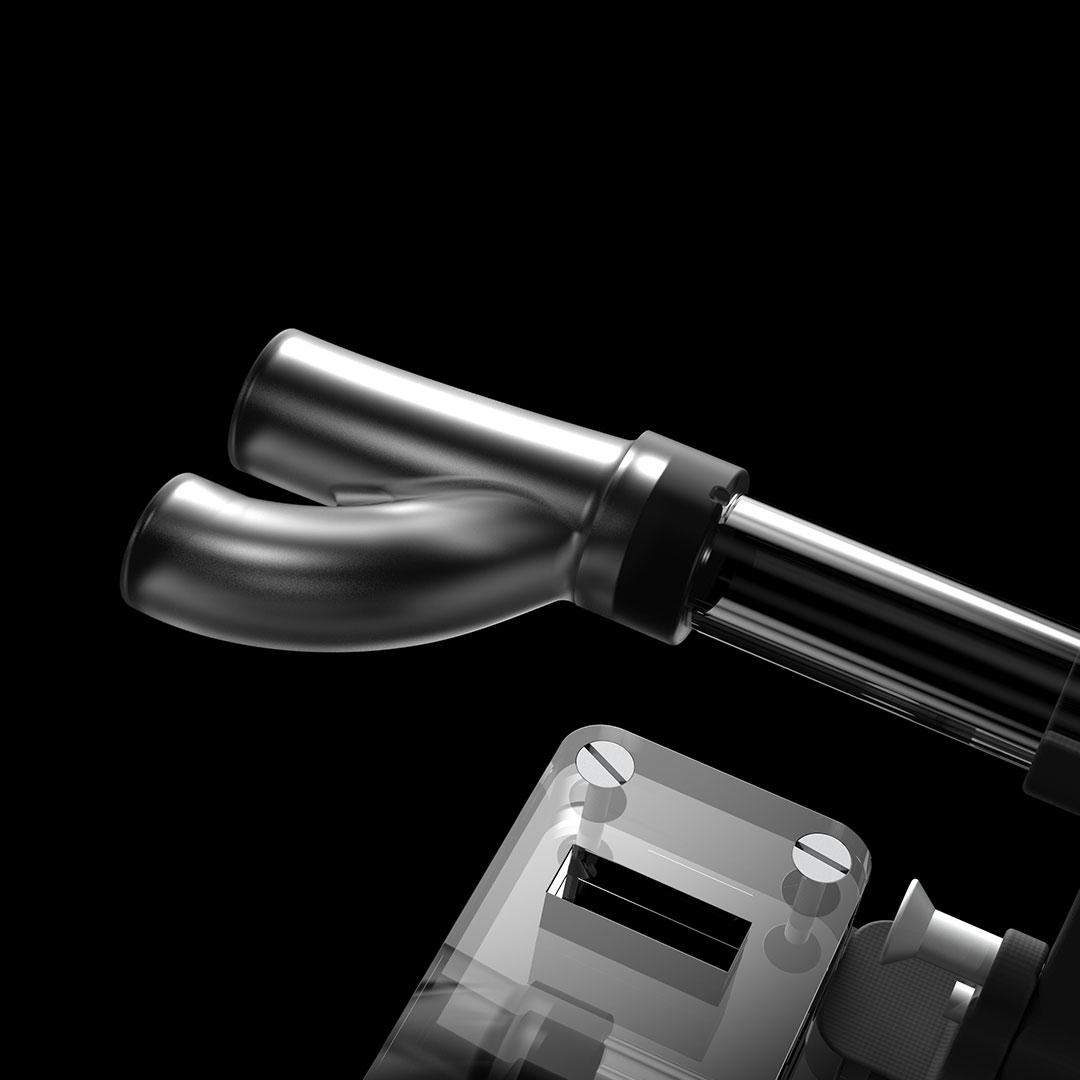

Human Grade

Platform

Anatomical system  components  patient scenarios


Modular
Combination of soft leaflet structures coupled with basic anatomical references and realistic angles. Based on real patients CT, and 3D echo datasets

Anatomical system  components  patient scenarios


Components
Promotes understanding of 3D anatomy from 2D displays with integrated video-camera systems and fine hand-eye coordination

Anatomical system  components  patient scenarios


Pathologies
DMR and FMR

Basic
Regular patient geometry

Advanced
Challenging patient geometry

Technical

Features

Imaging capabilities  In the bag  plug and play


Imaging capabilities
Direct vision Four video cameras Adjustable heart rate between 40-80BPM 1x miniPC with dedicated simuAPP for split screen visualization, recording and remote training Fluoro compatible

Imaging capabilities  In the bag  Plug and play


All fits into
Laptop bag

Total weight
3kg

Dimension
30x20x8cm

Imaging capabilities  In the bag  Plug and Play


No tools required
Full system setup in 2 minutes and ready for your device

Disposables

CUSTOMIZED PATIENT PROFILES and anatomies

Mitral valve DMR

Soft compliant valve for simplified maneuvering


CC diameter
37,6mm

AP diameter
26mm

Leaflet Thickness
1mm

Mitral valve FMR


Four scenarios for steerable catheter navigation training

CC diameter
49mm

AP diameter
31mm

Leaflet Thickness
1mm

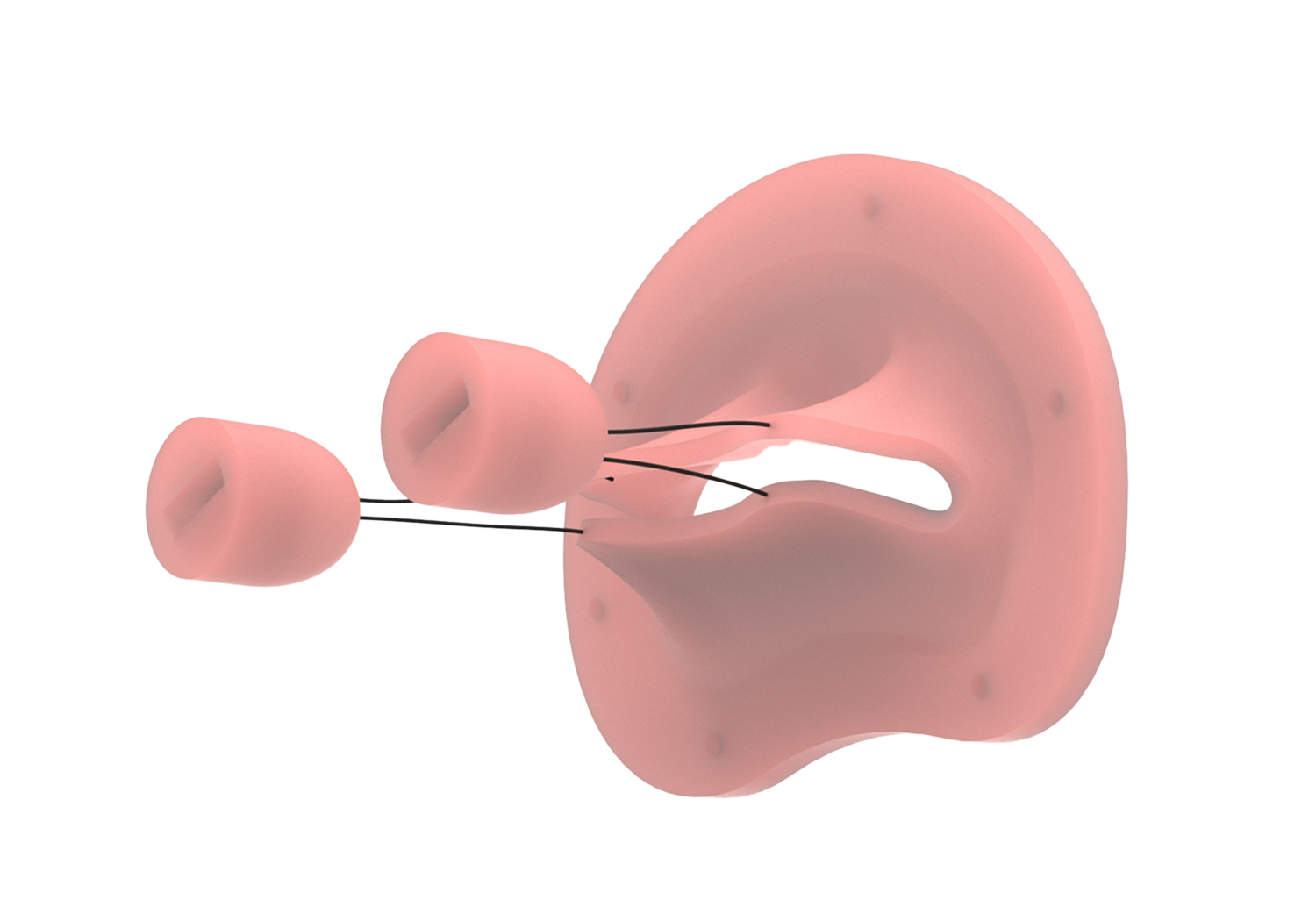

Mitral valve apparatus DMR

Soft compliant valve with chordae tendineae and papillary muscles

CC diameter
37,6mm

AP diameter
26mm

Leaflet base - PM distance
14mm

Mitral valve apparatus FMR

Soft compliant valve with chordae tendineae and papillary muscles

CC diameter
49mm

AP diameter
31mm

Leaflet base - PM distance
14mm

Mitral fossa prepunctured

Four scenarios for steerable catheter navigation training

Min diameter
31mm

Max diameter
39mm

Holes diameter
9mm
