ULTRA PORTABLE HEART SIMULATOR FOR TRANSCATHETER TRICUSPID VALVE INTERVENTIONS
Basic skills targeted training. The simuDRY platform simulators are static and ultra portable

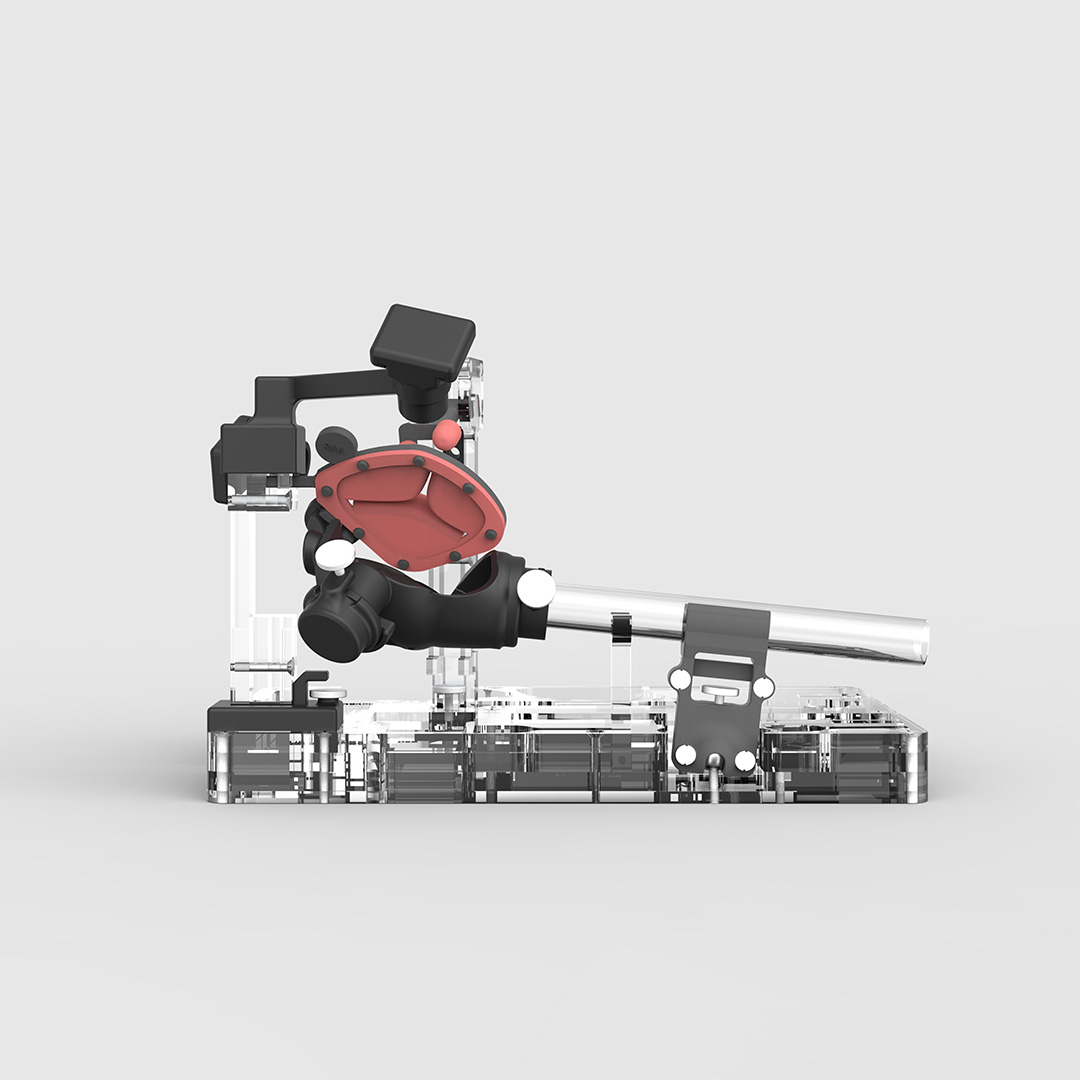

Overview
MAIN FEATURESSTRUCTURE
Focus
Delivery system and device
Learn
Basic anatomical references
Delivery system maneuvering
Basic procedural steps
Spatial targeted interaction of the device and delivery system with anatomy
MAIN FEATURESSTRUCTURE
Rigid structures Replicated geometry of
Right Atrium
Tricuspid Annulus
Inferior Vena Cava
Landmarks representing
Aortic Valve
Right Atrial Appendage
Soft structures
Papillary Muscles with Chordae
Valve Leaflets
Real imaging
CAMERA Views
Direct cameras
Replicating the implante's view through four video cameras, positioned to capture the following echo-like views.
1. Rotable En-Face / Trans-Gastric
2. Reverse Trans-Gastric
3. Bicaval / Right Ventricle Inflow
4. Long-Axis Septal
←
→

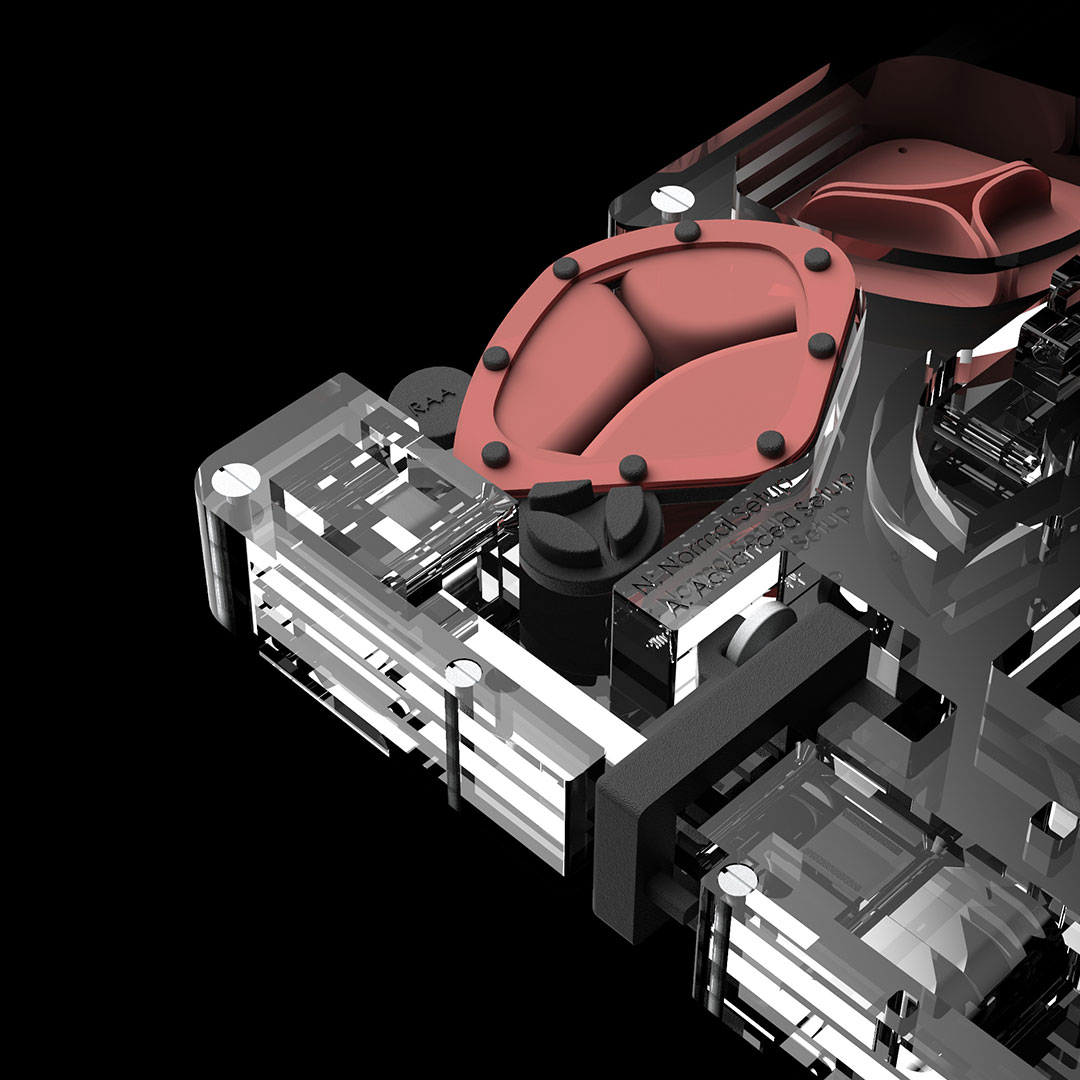

Human Grade
Platform
Anatomical systemcomponentspatient scenarios
Modular
Combination of soft leaflet structures coupled with basic anatomical references and realistic angles. Based on real patiens CT, and 3D echo datasets
Anatomical systemcomponentspatient scenarios
Components
Promotes understanding of 3D anatomy from 2D displays with integrated video-camera systems and fine hand-eye coordination
Anatomical systemcomponentspatient scenarios
Basic
Regular patient geometry
Advanced
Challenging patient geometry

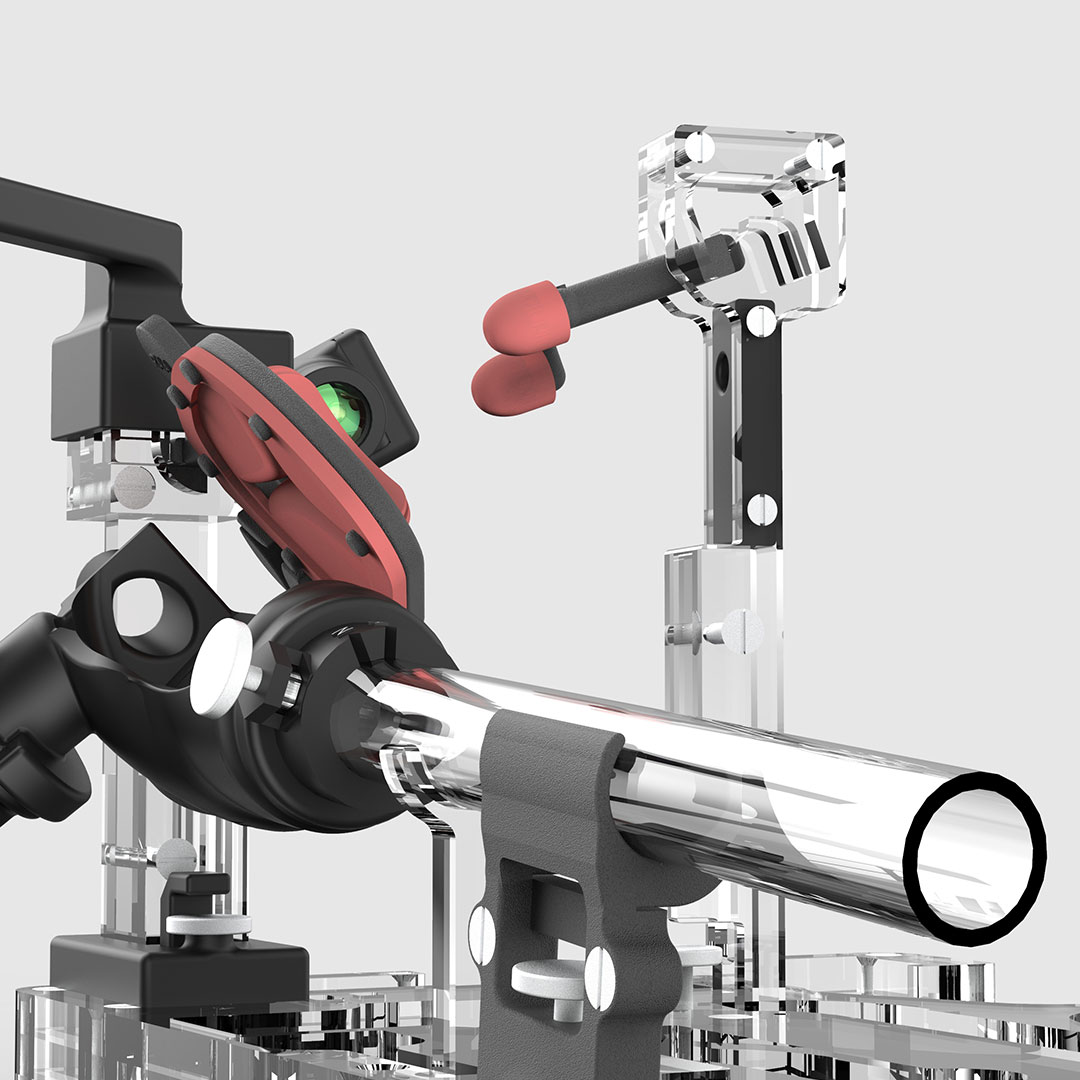

Technical
Features
Imaging capabilitiesIn the bagplug and play
Imaging capabilities
Direct vision
Three video cameras
1x miniPC with dedicated simuAPP for split screen visualization, recording and remote training
Fluoro compatible
Imaging capabilitiesIn the bagPlug and play
All fits into
Laptop bag
Total weight
3kg
Dimension
30x20x8cm
Imaging capabilitiesIn the bagPlug and Play
No tools required
Full system setup in 2 minutes and ready for your device
Disposables
CUSTOMIZED PATIENT PROFILES and anatomies
TRICUSPID VALVE
Soft compliant valve for simplified maneuvering
Mean diameter
57mm
SL diameter
64mm
Leaflet Thickness
1mm

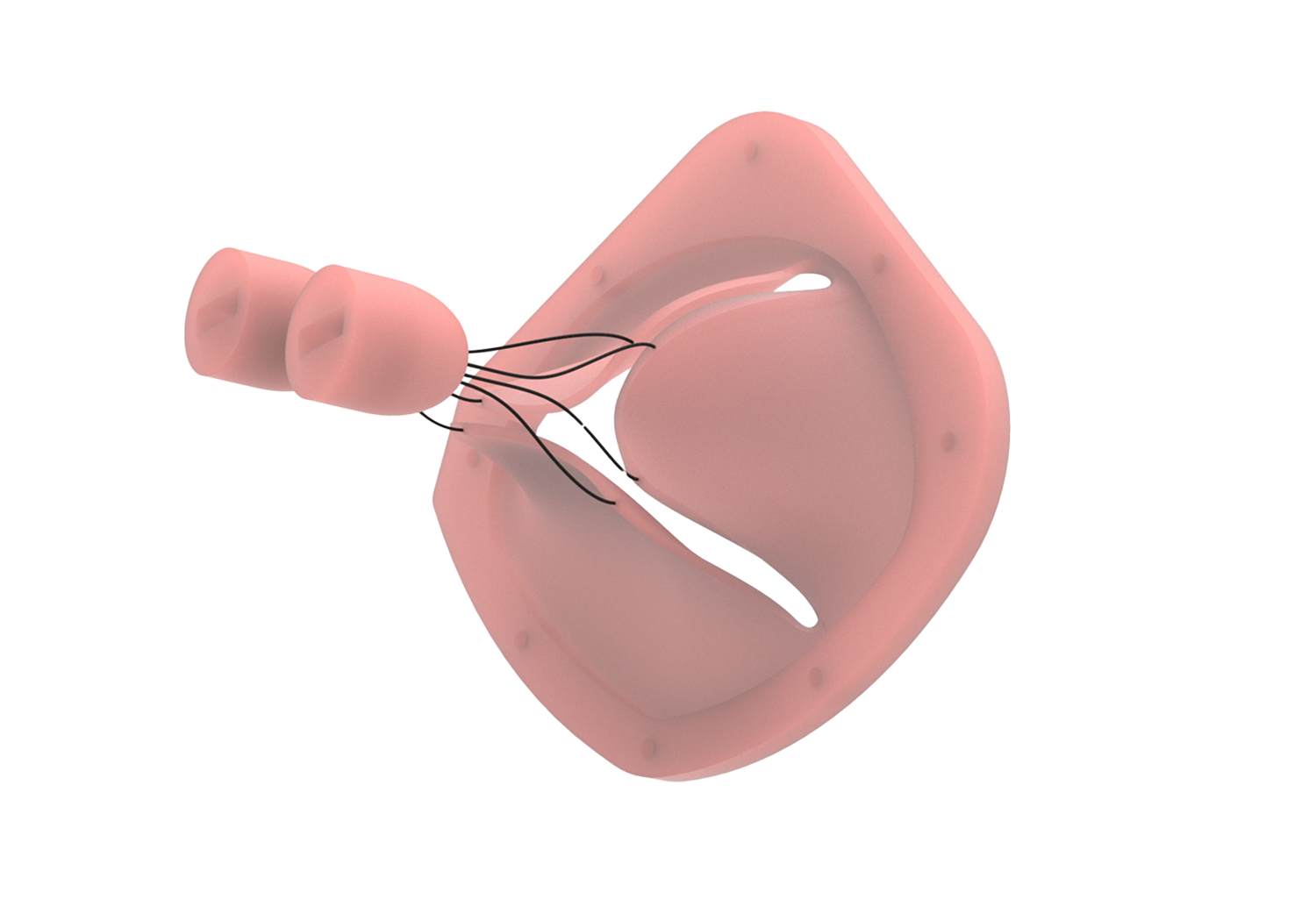

TRICUSPID VALVE APPARATUS
Soft compliant valve with chordae tendinae and papillary muscles
Mean diameter
57mm
SL diameter
64mm
Leaflet base - PM distance
16mm
