ULTRA PORTABLE HEART SIMULATOR FOR TRANSSEPTAL PUNCTURE
Basic skills targeted training. The simuDRY platform simulators are static and ultra portable

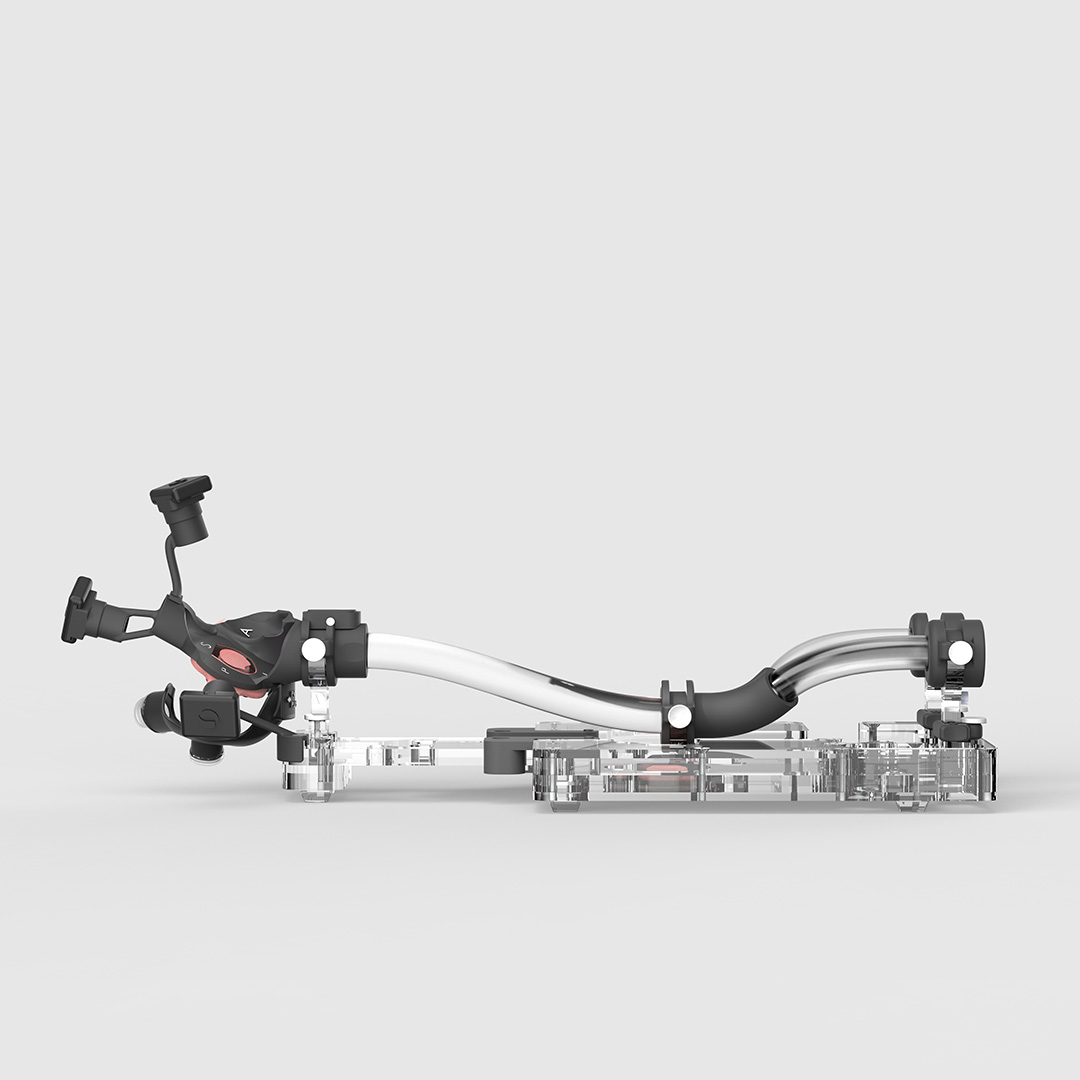

Overview
MAIN FEATURESSTRUCTURENAVIGATION
Focus
Transseptal kit and puncture location
Learn
Basic anatomical references
Fossa Ovalis approaches
Basic procedural steps
Spatial interaction with the fossa and surrounding anatomies
Targeted punctures for different therapies
Specific delivery system steering capability towards the Mitral valve in different puncture scenarios
MAIN FEATURESSTRUCTURENAVIGATION
Rigid structures Replicated geometry of
Right Atrium
Mitral Annulus
Mitral Valve
Inferior Vena Cava
Landmarks representing
Aortic Valve
Soft structures
Fossa Ovalis
MAIN FEATURESSTRUCTURENAVIGATION
Highlights
Anterior
Posterior
Superior
Inferior
Real imaging
CAMERA Views
Direct cameras
Replicating the implanter's view through two video cameras, positioned to capture the following echo-like views to guide the transseptal procedure.
1. Short Axis
2. 3D En-Face
3. Bicaval
4. Four Chamber
←
→

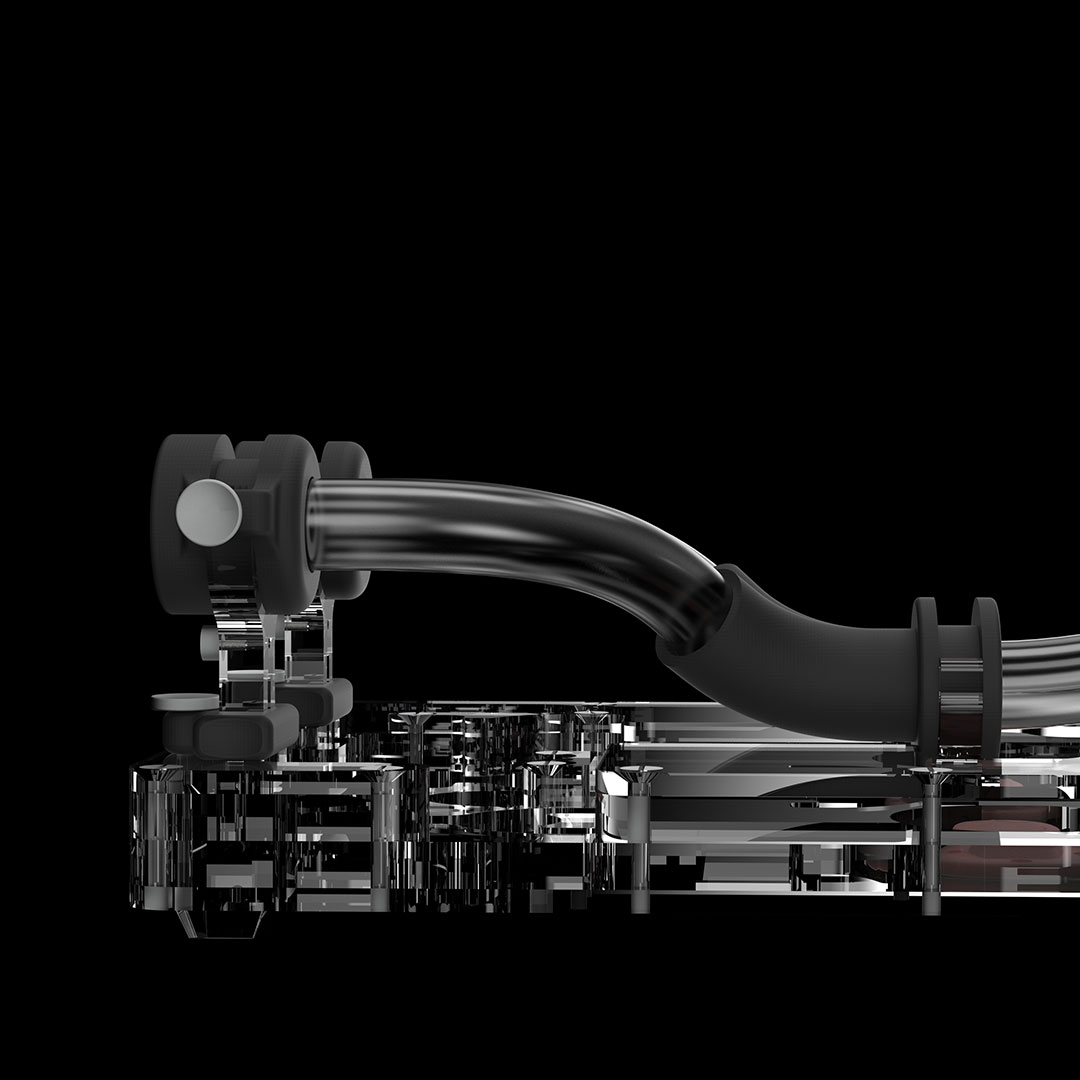

Human Grade
Platform
Anatomical systemcomponentspatient scenarios
Modular
Combination of soft Fossa Ovalis structure, basic anatomical references and realistic angles. Based on real patients CT, and 3D echo datasets
Anatomical systemcomponentspatient scenarios
Components
Promotes understanding of 3D anatomy from 2D displays with integrated video-camera systems and fine hand-eye coordination
Anatomical systemcomponentspatient scenarios
Basic
Regular patient geometry
Advanced
Challenging Septum access

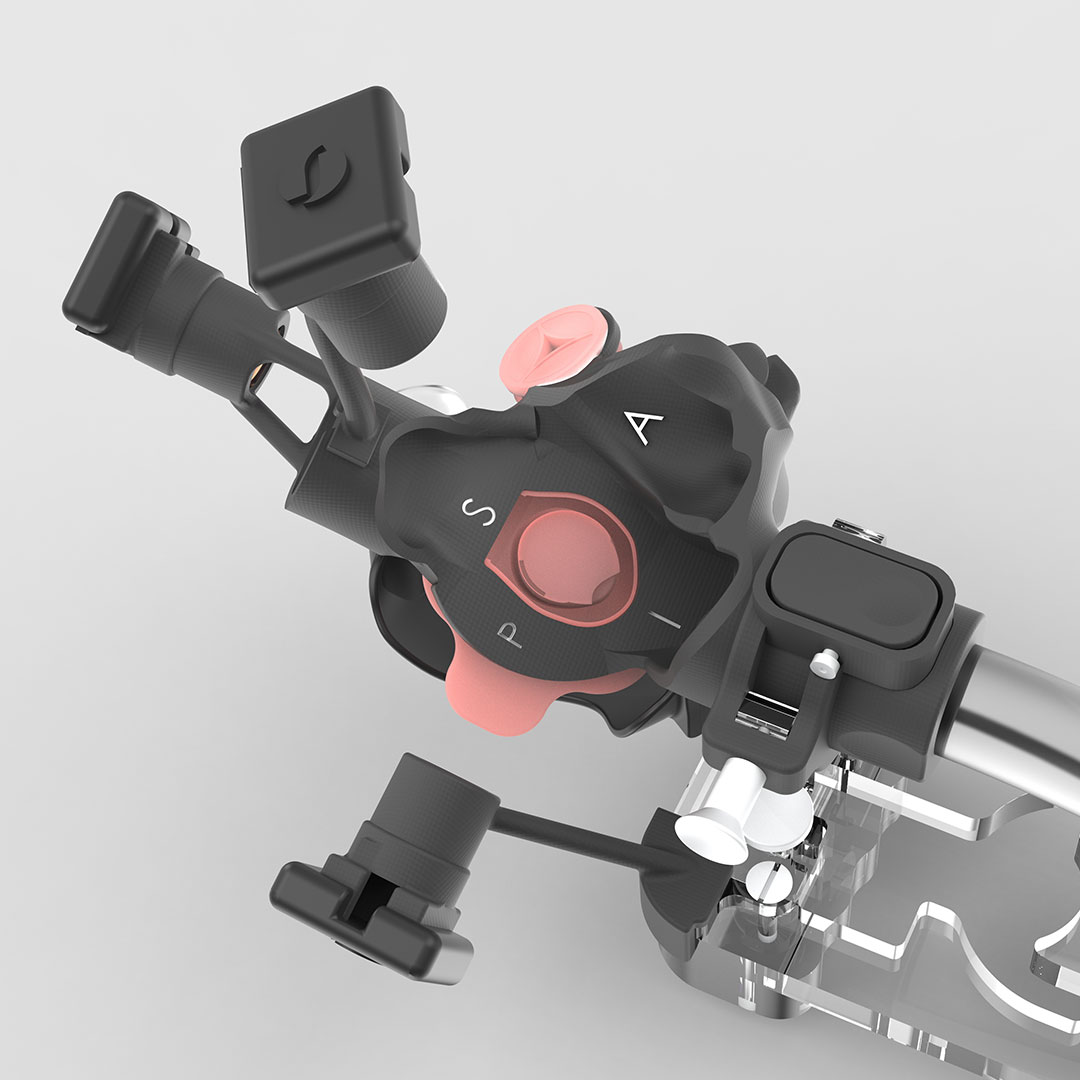

Technical
Features
Imaging capabilitiesIn the bagplug and play
Imaging capabilities
Direct vision
Four video cameras
1x miniPC with dedicated simuAPP for split screen visualization, recording and remote training
Fluoro compatible
Imaging capabilitiesIn the bagPlug and play
All fits into
Laptop bag
Total weight
2kg
Dimension
30x20x8cm
Imaging capabilitiesIn the bagPlug and Play
No tools required
Full system setup in 2 minutes and ready for your device
Disposables
CUSTOMIZED PATIENT PROFILES and anatomies

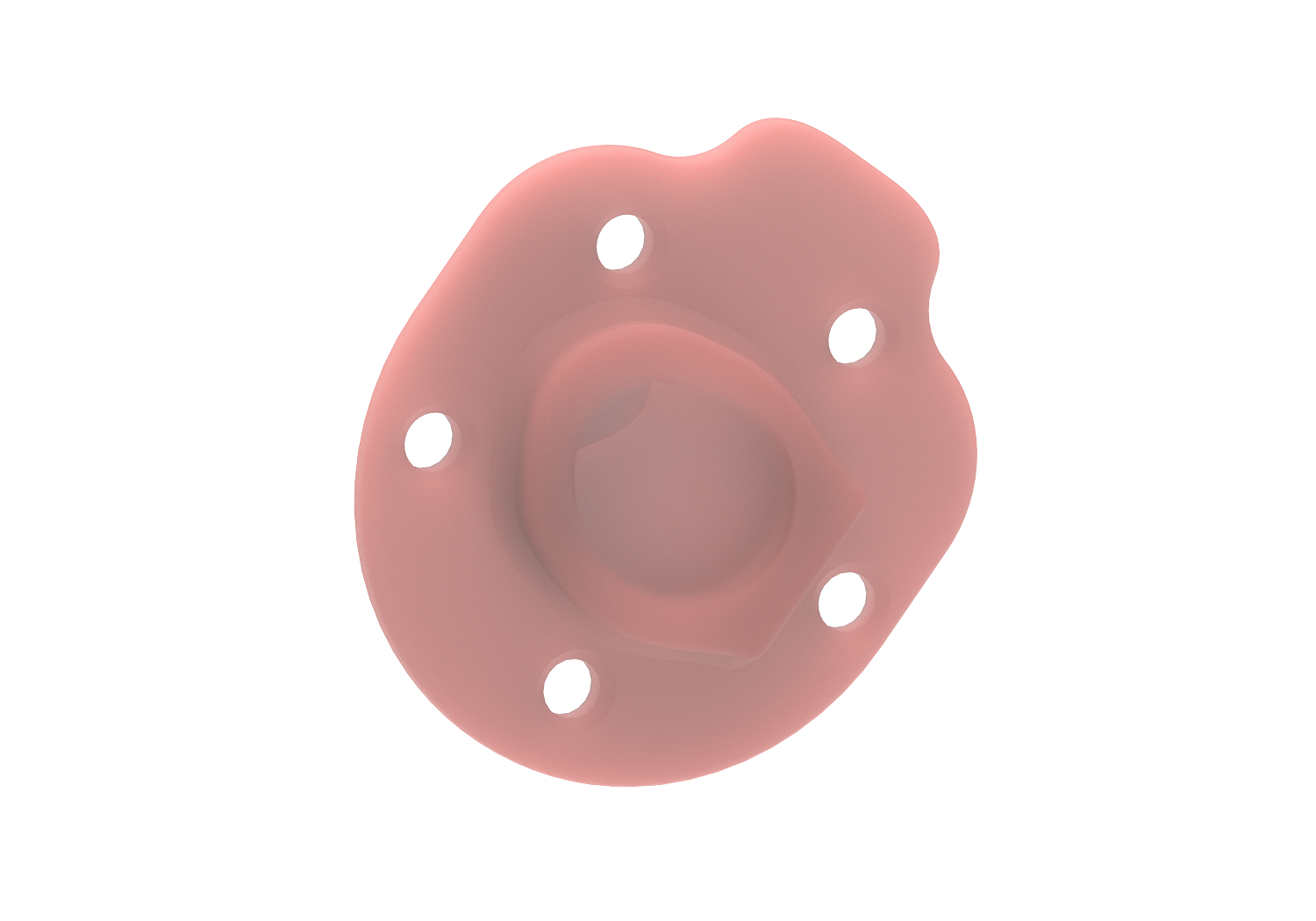

Transseptal fossa regular
Learn transseptal puncture
Min diameter
17mm
Max diameter
19mm
Fossa thickness
1mm
Transseptal fossa PFO
Master transseptal puncture in challenging conditions
Min diameter
17mm
Max diameter
19mm
Fossa thickness
1mm
Transseptal fossa floppy
Master transseptal puncture in challenging anatomies.
Min diameter
17mm
Max diameter
19mm
Fossa thickness
1mm
Transseptal fossa thick
Master transseptal puncture in challenging anatomies.
Min diameter
17mm
Max diameter
19mm
Fossa thickness
2mm
